Workshop Artis

Berlin-Tempelhof, Germany

Artis GmbH
Net floor area
Planning period
Construction period
Fritz Bender Baupreis 2016
Architekturpreis Berlin 2013 (Honorable Mention)
„Architecture for Necessity“ 2013, Art Museum Virserum, Schweden (Honorary Mention)
BDA Preis Berlin 2012
Green Buddy Award 2012 - Category "Ökologisches Bauen/Energetische Gebäudesanierung"
PROM des Jahres 2012
Deutscher Solarpreis 2012 (Badge)
KlimaSchutzPartner 2011 - Category "Successful and Innovative Design"
Berliner Holzbaupreis 2019
Roswag Architekten
Structural Engineer
Ziegert I Seiler Ingenieure
Mechanical Engineer
HDH Ingenieure
Daniela Friebel

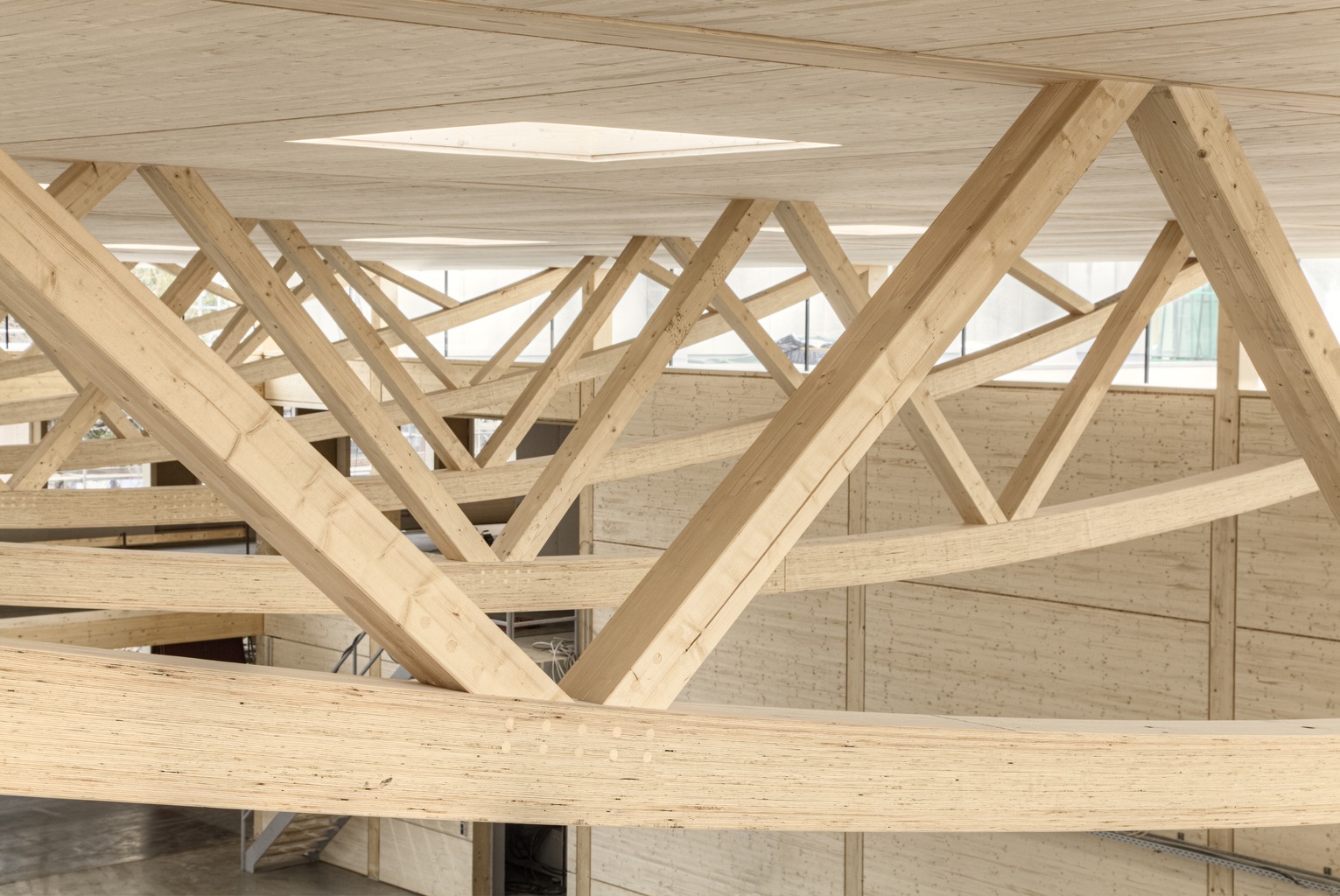

The company Artis GmbH realised their new inner-city headquarters and workshop building on Columbiadamm in Berlin-Tempelhof with ZRS Architekten Ingenieure. Artis implements high-quality furniture, installations and projects for fairs, exhibitions and interior design with the help of modern carpentry production techniques. The workshop is based around a double height work-hall with an adjacent two-story unit for administration and production facilities in a low-energy timber construction system. Due to the high amount of precision prefabrication the construction time could be kept to a minimum. The hall’s material-optimized load-bearing structure consists of innovative timber fish belly trusses in glue laminated timber spanning over 20m on timber columns with a light band at ceiling level. The structure creates a light and highly characterisitic working environment suited to Artis’s forward thinking approach to carpentry.

By combining a highly insulated building shell out of CO2-neutral natural building material (wood and cellulose) and highly efficient building technologies (solid fuel boilers, heat recovery for the paint room and PV-system) the requirements of the EnEV 2009 are exceeded by 86%.

In normal occupation the workshop is a plus-energy building, excess heat is used to heat the nearby concert venue C-Halle and while the workshop is located in a newly constructed residential area, its high acoustic standard is an example of how new manufacturing typologies can be located in inner-city areas.
